Introduction

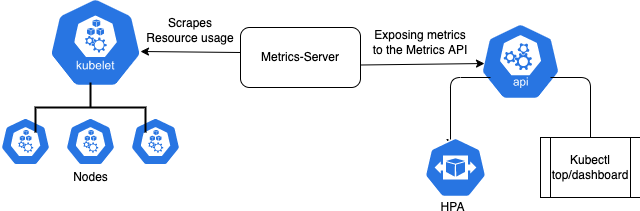

Metrics Server is a cluster-wide aggregator of resource usage data in Kubernetes. It collects metrics from the kubelet on each node and provides them to the Kubernetes API server, which can be used for horizontal pod autoscaling and other purposes.


Prerequisites

  • A running Kubernetes cluster (version 1.8 or later).
  • kubectl command-line tool installed and configured to communicate with your cluster.

Installation Steps

kubectl apply -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml

Verification

To verify that Metrics Server is running correctly, you can check the status of the Metrics Server pod:

kubectl get pods -n kube-system

You should see a pod named metrics-server-<hash> in the Running state.

You can also check if Metrics Server is collecting metrics by running:

kubectl top nodes

Example output:

vijay@controlplane:~$ kubectl top nodes
NAME           CPU(cores)   CPU(%)   MEMORY(bytes)   MEMORY(%)
controlplane   89m          1%       2672Mi          22%
node01         41m          2%       1718Mi          44%
node02         59m          2%       2460Mi          31%

To check metrics for pods in all namespaces, you can run:

kubectl top pods --all-namespaces

To check metrics for a specific namespace, you can run:

kubectl top pods -n <namespace>
