Introduction

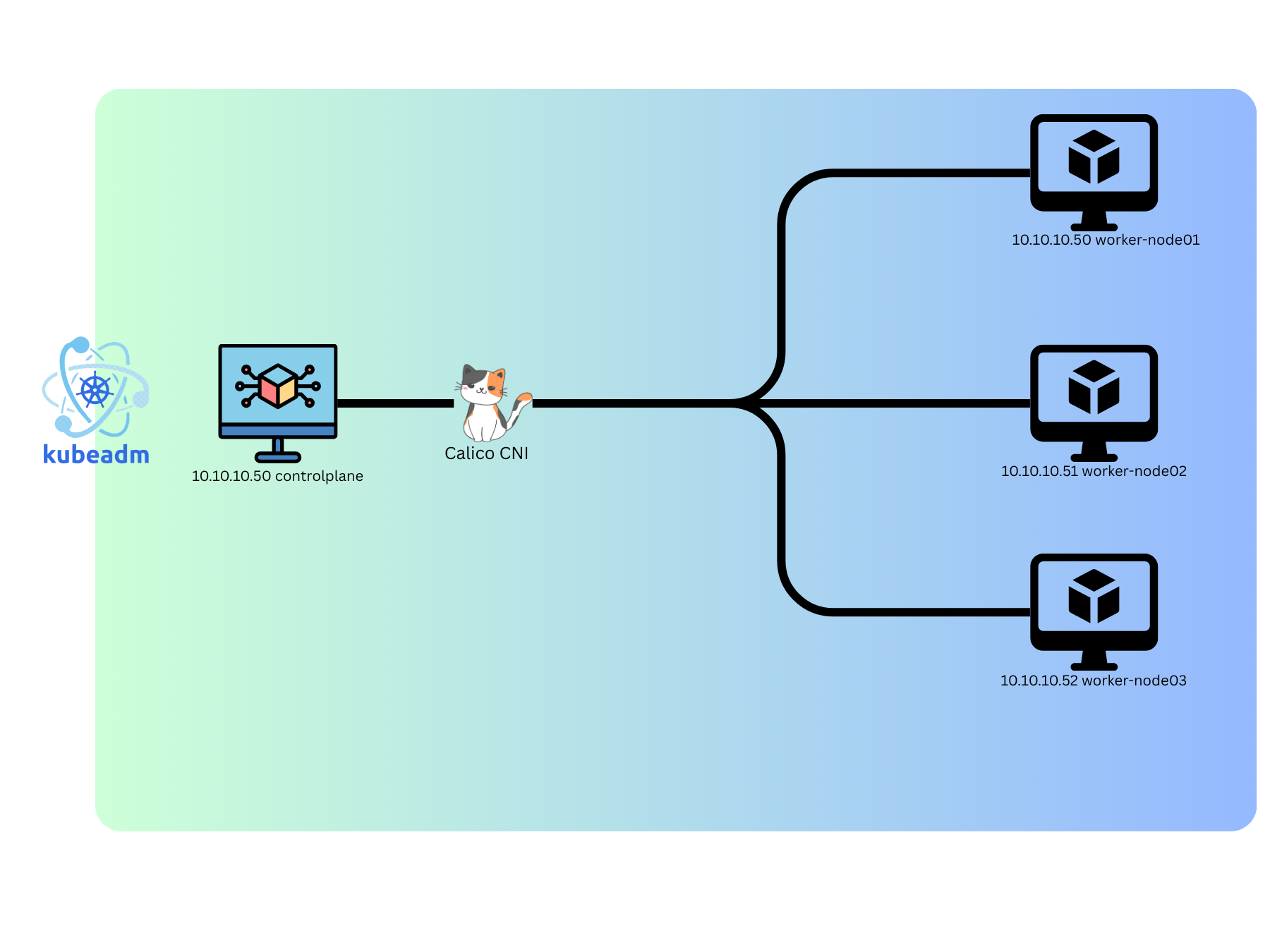

This guide will walk you through the following steps to set up a 3-node Kubernetes cluster using kubeadm:
- Configure unique hostnames for each node.
- Set up networking and update the
/etc/hostsfile. - Install required system packages and disable swap.
- Install and configure the container runtime (
containerd) and enable IP forwarding. - Install Kubernetes components:
kubeadm,kubelet, andkubectl. - Initialize the control plane node with
kubeadm. - Set up pod networking using Calico CNI.
- Join worker nodes to the cluster.
- Verify the cluster status and apply additional configurations.
Prerequisites
- Create three VMs or physical servers with Ubuntu 22.04 LTS or later.
- Make sure all nodes can communicate with each other over the network and has internet access.
Setup
Step 1: Setup Hostnames on all nodes
On each node, set a unique hostname using the following command:
sudo hostnamectl set-hostname <your-node-hostname>
For example, you can use the following hostnames:
# on control plane node
sudo hostnamectl set-hostname controlplane
# on worker1 node
sudo hostnamectl set-hostname worker-node01
# on worker2 node
sudo hostnamectl set-hostname worker-node02
Step 2: Configure Node IP address details in all nodes
Edit the /etc/hosts file on all nodes to include the IP addresses and hostnames of all nodes in the cluster.
sudo nano /etc/hosts
Add the following lines to the file:
Make sure to replace the IP addresses with your actual node IPs. In my case, IPs of the nodes are:
# /etc/hosts
10.10.10.50 controlplane
10.10.10.51 worker-node01
10.10.10.52 worker-node02
Step 3: Update and Install Required Packages on all nodes
sudo apt update && sudo apt install -y apt-transport-https ca-certificates curl gpg lsb-release gnupg software-properties-common
sudo swapoff -a
sudo sed -i '/ swap / s/^\(.*\)$/#\1/' /etc/fstab
| Package | Purpose |
|---|---|
| apt-transport-https | Enables apt to use HTTPS for downloading packages. |
| ca-certificates | Provides trusted SSL certificates for secure connections. |
| curl | Tool for transferring data from URLs, often used to download files. |
| gpg and gnupg | Tools for managing GPG keys, used to verify package authenticity. |
| lsb-release | Provides Linux Standard Base information about the system. |
| software-properties-common | Adds scripts for managing apt repositories. |
| Command | Purpose |
|---|---|
sudo swapoff -a |
Ensures that swap is disabled, which is a requirement for Kubernetes to function properly. |
sudo sed -i '/ swap / s/^\(.*\)$/#\1/' /etc/fstab |
Comments out any swap entries in the /etc/fstab file to prevent swap from being enabled on reboot. |
Step 4: Install Containerd and Enable IP Forwarding
Before installing Kubernetes components, we need to set up the container runtime and enable IP forwarding. IP forwarding is required for Kubernetes to allow communication between pods across nodes.
Make sure to run the following steps on all nodes (control plane and worker nodes).
Step 4.1: Enable IP Forwarding on all nodes
sudo sysctl -w net.ipv4.ip_forward=1
Then make it persistent across reboots by editing the sysctl configuration:
echo "net.ipv4.ip_forward = 1" | sudo tee /etc/sysctl.d/99-kubernetes.conf
sudo sysctl --system
Step 4.2: Install Containerd on all nodes
sudo apt install -y containerd
# Create default config file
sudo mkdir -p /etc/containerd
containerd config default | sudo tee /etc/containerd/config.toml
# Change cgroupDriver to systemd
sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/' /etc/containerd/config.toml
# Restart containerd
sudo systemctl restart containerd
sudo systemctl enable containerd
Step 5: Install kubeadm, kubelet, kubectl on all nodes
Note: I am using Kubernetes version v1.32.0 in this guide. You can change it to the latest stable version if needed.
sudo mkdir -p /etc/apt/keyrings
curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.32/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo "deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.32/deb/ /" | sudo tee /etc/apt/sources.list.d/kubernetes.list
sudo apt update
sudo apt install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectl
Step 6: Initialize the ControlPlane Node (Only on controlplane node)
Step 6.1: Initialize the kubeadm on control plane
Run below command only on the controlplane node. Not on worker nodes.
If you want to use different CIDR for pod or service, you can change the --pod-network-cidr and --service-cidr options accordingly.
Kept 192.168.0.0/16 for pod network CIDR as it is the default config for Calico CNI. If you plan to change it, make sure to update the Calico manifest later.
sudo kubeadm init \
--apiserver-advertise-address=10.10.10.50 \
--pod-network-cidr=192.168.0.0/16 \
--service-cidr=10.100.0.0/16 \
--kubernetes-version=v1.32.0
Step 6.2: Set up kubeconfig for the controlplane node
mkdir -p $HOME/.kube
sudo cp /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Step 7: Install Calico CNI for Pod Networking (Only on controlplane node)
Since our CIDR for pod and service are below:
-
--pod-network-cidr=192.168.0.0/16: for Calico or your CNI -
--service-cidr=10.100.0.0/16: for Kubernetes services (ClusterIP, etc.) -
Make sure these do not overlap with your existing network ranges.
When using a non-default pod CIDR, you must modify the Calico manifest accordingly.
Step 7.1: Download and Apply Calico Manifest
curl -O https://raw.githubusercontent.com/projectcalico/calico/v3.27.2/manifests/calico.yaml
Step 7.2: Edit Calico Manifest
sudo nano calico.yaml
Search for the following block:
- name: CALICO_IPV4POOL_CIDR
value: "192.168.0.0/16"
Make sure it matches your --pod-network-cidr you used during kubeadm init.
Step 7.3: Apply the Calico Manifest
kubectl apply -f calico.yaml -n kube-system
Wait for the Calico pods to be up and running.
kubectl get pods -n kube-system
Example output:
vijay@controlplane:~$ kubectl get pods -n kube-system
NAME READY STATUS RESTARTS AGE
calico-kube-controllers-7967497bcf-j2tj2 1/1 Running 0 60s
calico-node-8sqtx 1/1 Running 0 40s
calico-node-mgjbt 1/1 Running 0 41s
calico-node-qkdsz 1/1 Running 0 43s
Now your control plane node is ready with Calico CNI installed and ready for worker nodes to join.
Step 8: Join Worker Nodes to the Cluster
From kubeadm init, you’ll get a kubeadm join command. Run it on both worker-node01 and worker-node02.
Example:
sudo kubeadm join 10.10.10.50:6443 --token abcdef.0123456789abcdef \
--discovery-token-ca-cert-hash sha256:<hash>
If you lost the token, re-generate it using the following command on the controlplane node:
sudo kubeadm token create --print-join-command
Step 9: Verify Cluster Status and add additional configurations
After joining the worker nodes, you can verify the cluster status from the controlplane node.
kubectl get nodes
You should see:
controlplane Ready control-plane
worker-node01 Ready <none>
worker-node02 Ready <none>
Step 9.1: Set up kubeconfig for root user
On the control plane node, only if you want to use kubectl from your controlplane node as root user.
sudo cp /etc/kubernetes/admin.conf /root/.kube/config
sudo chown root:root /root/.kube/config
Step 9.2: Enable Bash Completion for kubectl
sudo apt install -y bash-completion
echo "source <(kubectl completion bash)" >> ~/.bashrc
echo "alias k=kubectl" >> ~/.bashrc
echo "complete -F __start_kubectl k" >> ~/.bashrc
source ~/.bashrc
Conclusion
You have successfully set up a 3-node Kubernetes cluster using kubeadm. The control plane node is running with Calico CNI for pod networking, and the worker nodes are joined to the cluster. You can now deploy applications and manage your Kubernetes cluster effectively.
